How to use your Sony Alpha camera as a webcam for livestreaming content

IMPORTANT: This article applies only to specific products and/or operating systems. Check Applicable Products and Categories for details.

Want to use your Sony camera in your streaming setup? In this article, we’ll explain how to set up your Sony camera so viewers can enjoy your streaming sessions to the fullest! We’ll go over two options:

1. Using a capture card to connect your Sony camera to a computer
2. Using Imaging Edge Webcam software (tap or click to jump to section)

What is livestreaming?

Livestreaming is broadcasting video and/or audio content in real time over the Internet. Unlike pre-recorded videos, livestreaming allows viewers to watch events as they happen, often with interactive elements such as live chat.

A streamer can use several devices to improve the quality of their stream, such as a good quality camera or microphone, streaming software, lighting, etc. In this article, we’ll explain how you can use your Sony camera to elevate the image quality of your stream.

Option 1: Using a capture card

How to connect a capture card to your Sony Camera

1. What do you need?

1. Your Sony camera.
2. HDMI cable or a Micro HDMI to HDMI Cable:
   • Some camera models have a Micro HDMI slot, others a standard HDMI slot. You can also use a micro HDMI to HDMI adapter.
3. A capture card. Capture cards are available at different price ranges and options.
4. Computer with streaming software (e.g., OBS).
5. Optional: a dummy battery.

2. Settings

1. Turn ON your Sony camera.
2. Go to Menu → HDMI Settings → HDMI Info Display and set it to Off.
3. This setting will remove the user interface information from your camera screen (removing overlays) so it doesn’t appear on the captured footage.
4. The easiest setting is Movie mode in Continuous AF mode (AF-C) with Face Detection/Eye Detection ON.
5. You can also opt for manual focus to avoid blur from autofocus shifts. This should be minimal if you’re not planning to move a lot.
6. To match your lighting, you can adjust other settings, such as exposure, ISO, or white balance. Some streamers use additional soft lighting for better image quality.

3. Connection

1. Connect the Micro HDMI or HDMI to the camera.
2. Plug the other HDMI end into the capture card.
3. Connect the capture card to your PC via USB. For the best performance, plug it into a USB 3.0 port (you can recognise them by their blue color, and they’re often marked with the SuperSpeed logo). USB hubs can work, but only if they also support USB 3.0.
4. Place the camera on a tripod and/or a suitable location to record yourself.

4. Streaming software configuration

1. After connecting your camera to the capture card and computer, remember to remove the lens cap and turn your camera on if you haven’t already done so. (We’ve all been there.)
2. Open the streaming software of your choice. This article takes OBS as an example. When setting up your scene, add a Video Capture Device source.



3. The capture card will appear as an available option (it could be called USB Video or go by another name). Once added, the video feed will show what your camera is registering. |

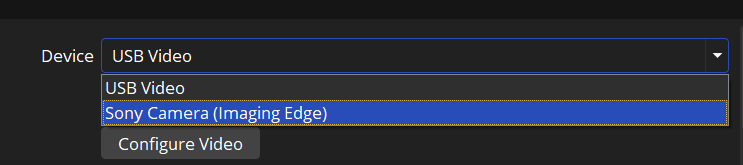

   This example image shows both options: USB Video is the capture card option, and Sony Camera (Imaging Edge) is the Imaging Edge Webcam version

4. You can adjust the video settings in the streaming software (e.g., resolution, and frame rate) based on your needs and equipment.
5. A capture card can also record audio via your camera. If you prefer to use a dedicated microphone, please disable it in the streaming software settings.

That’s it! You should be all set to treat your viewers to the excellent video quality from your Sony Alpha camera.

If you do not have a capture card, you can use the Imaging Edge Webcam software as a solid alternative.

Option 2: Using Imaging Edge Webcam software

Imaging Edge Webcam lets you connect your Sony camera to your pc and use it as a webcam with a live streaming/web conferencing service.

How to use your Sony camera as a webcam with Imaging Edge Webcam software

1. What do you need?

1. Your Sony camera
2. The supplied USB cable that came with your camera to connect your camera to your computer

4. Computer with streaming software (e.g., OBS)
5. Optional: a dummy battery.

2. Installation & Settings

You can find a detailed overview in this Imaging Edge webcam article, but we’ve summarized the most important information here.

2.1. Camera settings

You need to enable or disable the following Network settings on your camera:

1. Disable the Smartphone connection (so your camera knows it needs to focus on the computer). If your camera does not have this function, you do not need to disable it.
2. Enable the PC Remote function (to allow your computer to take control of your camera)
3. Set the PC Remote function to USB (to allow the USB cable to transfer data). Some cameras will not have a specific option to set the PC remote function to USB. If the option is not available, there’s no need to set it.

The article mentioned above includes specific steps per model.

2.2 Setting up Imaging Edge Webcam

1. Download and install the Imaging Edge Webcam and Desktop software. The Imaging Edge Desktop software has the necessary driver for the PC remote function. However, you can’t use the remote shooting function while using the webcam.
2. Connect your Sony camera to your computer with the supplied USB cable.
3. Place the camera on a tripod and/or a suitable location to record yourself.
4. Remember to remove the lens cap and turn your camera on if you haven’t already done so. (We’ve all been there.)
   • Some camera models should be set to Auto mode before launching the live streaming software. After launching, switch to movie mode.
5. Open the streaming software of your choice. This article takes OBS as an example. When setting up your scene, add a Video Capture Device source.



6. The Imaging Edge webcam will appear as an available option. Once added, the video feed will show what your camera is seeing.


   This example image shows both options: USB Video is the capture card option, and Sony Camera (Imaging Edge) is the Imaging Edge Webcam version

7. About adjusting your video and audio settings:
   • In contrast to a capture card, the Imaging Edge Webcam does not handle audio from the camera’s built-in microphone or an external microphone. Instead, you should use your computer’s built-in microphone or an external microphone.
   • The resolution is set to 1024 x 576, and the aspect ratio is automatically set to 16:9. However, 4 K streaming is not possible with Imaging Edge webcam software.

That’s it! Although a capture card is more equipped to utilize your Sony camera’s full potential, Imaging Edge Webcam is still a great (and free) option for integrating your Sony camera into your streaming setup. Have fun!
